Tracking system integration

Solutions for Stype tracking system

Calibration, lens data and streaming for Stype RedSpy.

Get a detailed proposal Contact Camix

CAMIX / VP SYSTEMSSYSTEM ONLINE

CAMIX / PIPELINE

Camix Prizm

Camix Prizm: The Perfect Calibration Solution for Stype RedSpy

Introducing Camix Prizm, a comprehensive solution for configuring, calibrating and streaming virtual camera state data. It works seamlessly with almost any existing tracking system, including Stype RedSpy.

Configure
Calibrate
Stream virtual camera state

CAMIX / PIPELINE

Connected workflow

Enhancing Stype RedSpy with Camix Prizm

Camix Prizm enhances the functionality of Stype RedSpy by providing a robust calibration solution. It combines data from the camera, tracking system, lens encoders and sync generator to create a precise virtual camera state. This includes position, rotation, field of view and lens distortion.

CAMIX / PIPELINE

Fast and accurate

Calibration: The Heart of Camix Prizm

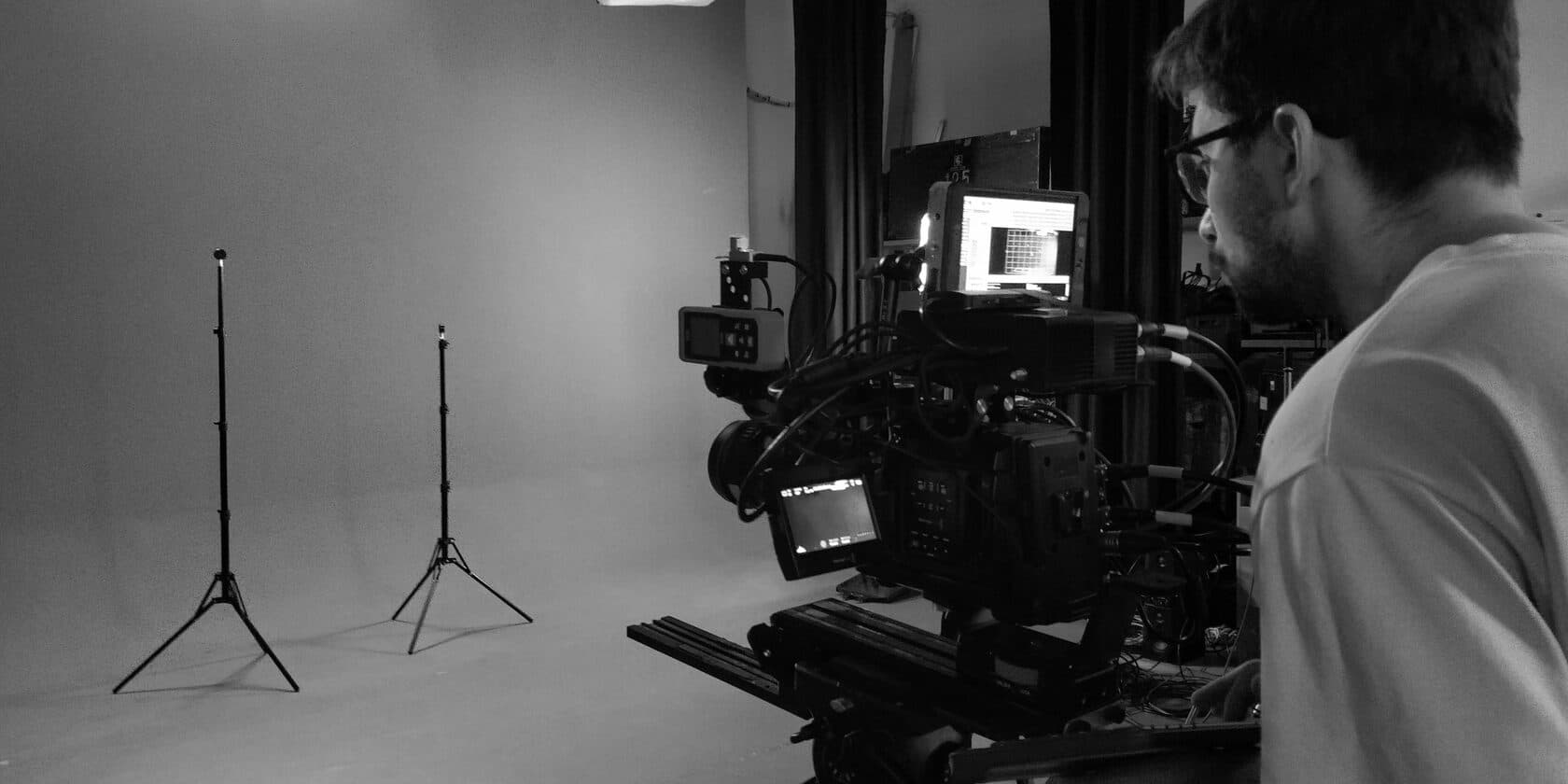

Calibration is one of the most important tasks of virtual camera tracking. Camix Prizm allows you to calibrate any lens + camera set in just 30 minutes. The calibration file contains zoom- and focus-dependent information about lens distortion, position and rotation of the virtual camera point and more. After changing the position or replacing the tracker, recalibration takes no more than 5 minutes!

Lens distortion
Virtual camera point
Field of view
Focus plane distance

Tracking accuracy

Camix Prizm enhances the tracking data

Tracking-space mapping

Correction of tracking-space distortions and compensation for deviations from the actual camera position.

Smoothing and anti-jitter

Stabilize tracking data while preserving the response needed by the production.

Coordinate-system control

Change axes, scale and shift the tracking space for the target engine and stage.

Genlock synchronization

Synchronize tracking data via genlock with Camix Prizm HE.

CAMIX / PIPELINE

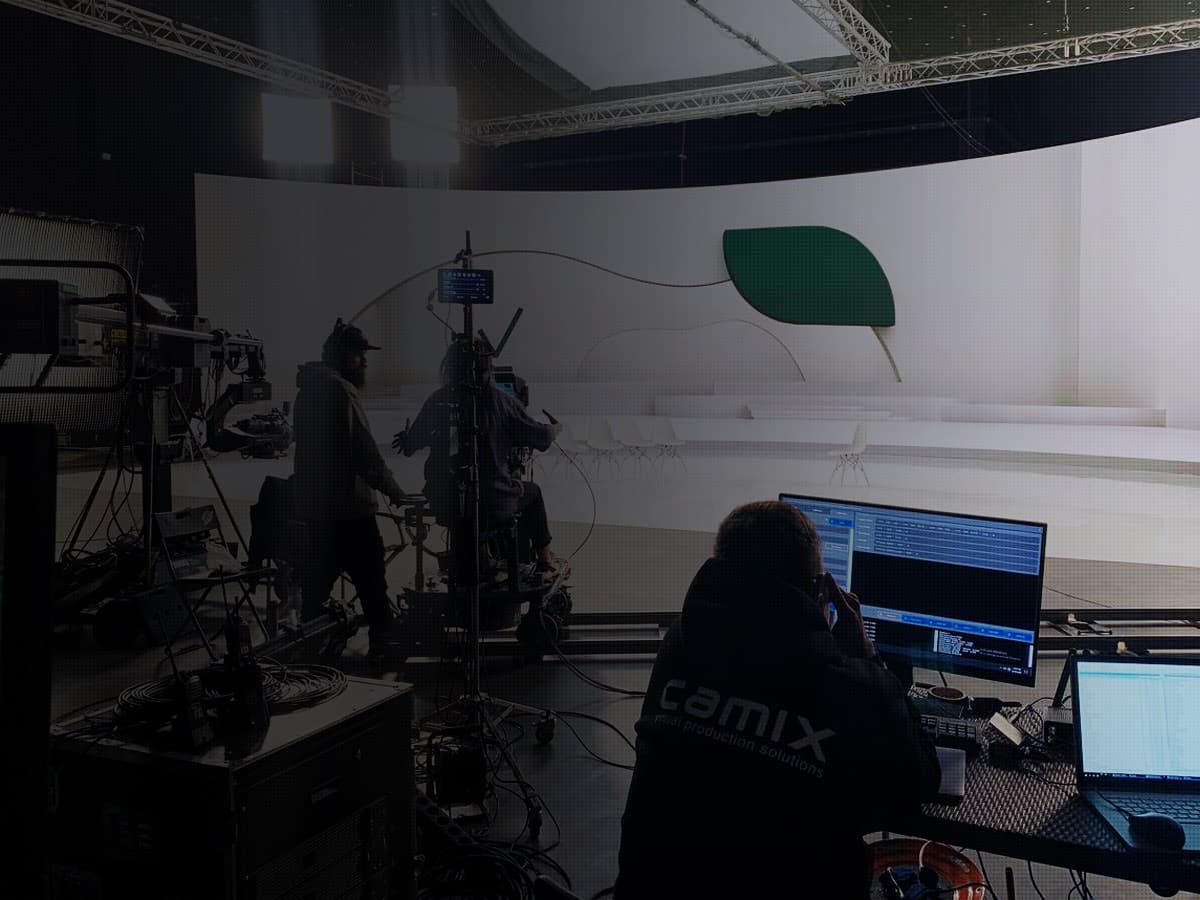

Virtual production pipeline

Streamlining Virtual Production with Camix Prizm

With Camix Prizm, you can streamline your virtual production process. Connect a tracking system, calibrate the lens + camera and stream the exact virtual camera state using FreeD, OSC, XML, JSON or F4. Experience a more reliable virtual production workflow with Camix Prizm and Stype RedSpy.

FreeD
OSC
XML
JSON
F4 (Mo-Sys)

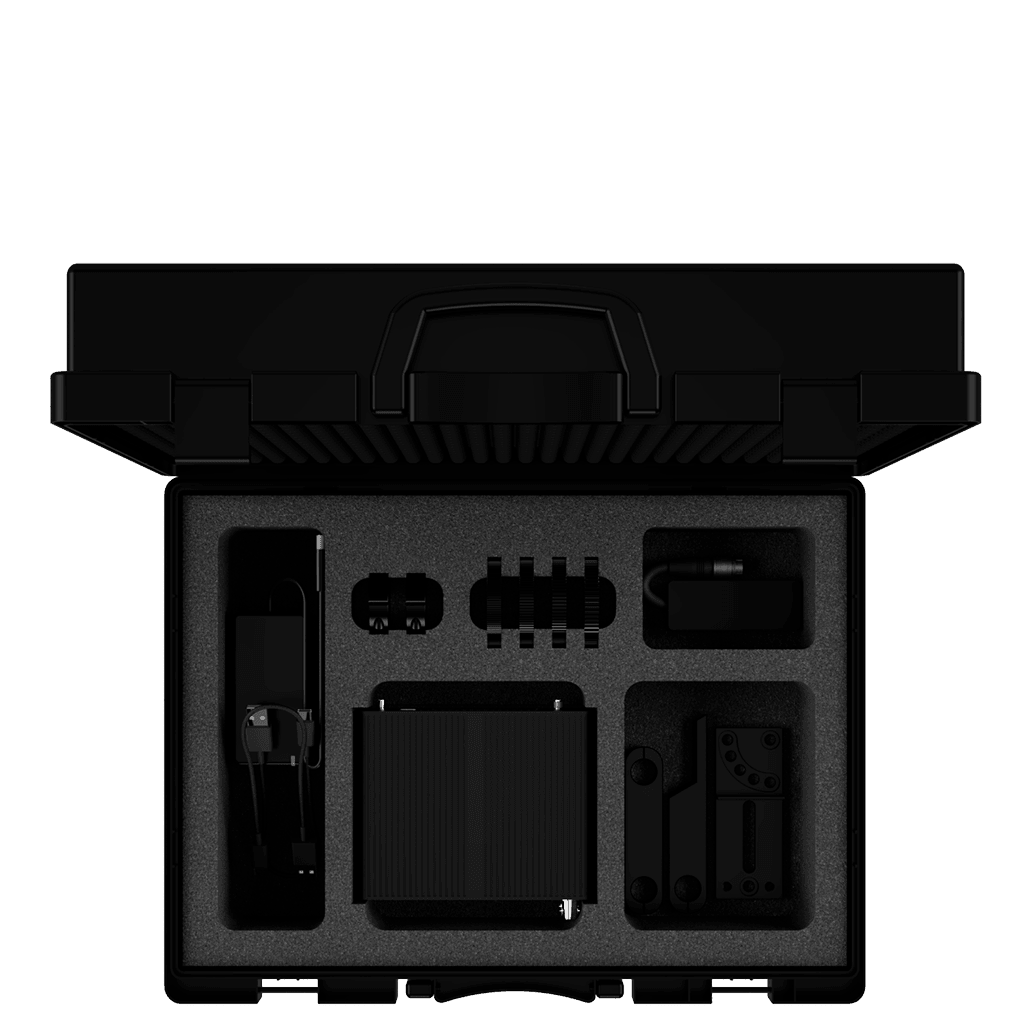

Available configurations

Camix options for setups with Stype RedSpy

Prizm SE: Rapid calibration: up to 15 min for a prime lens and up to 30 min for a zoom lens. High-precision AR/XR calibration, tracking-space mapping, smoothing and anti-jitter, coordinate-system manipulation, video input and FreeD / OSC / JSON / XML / F4 streaming.

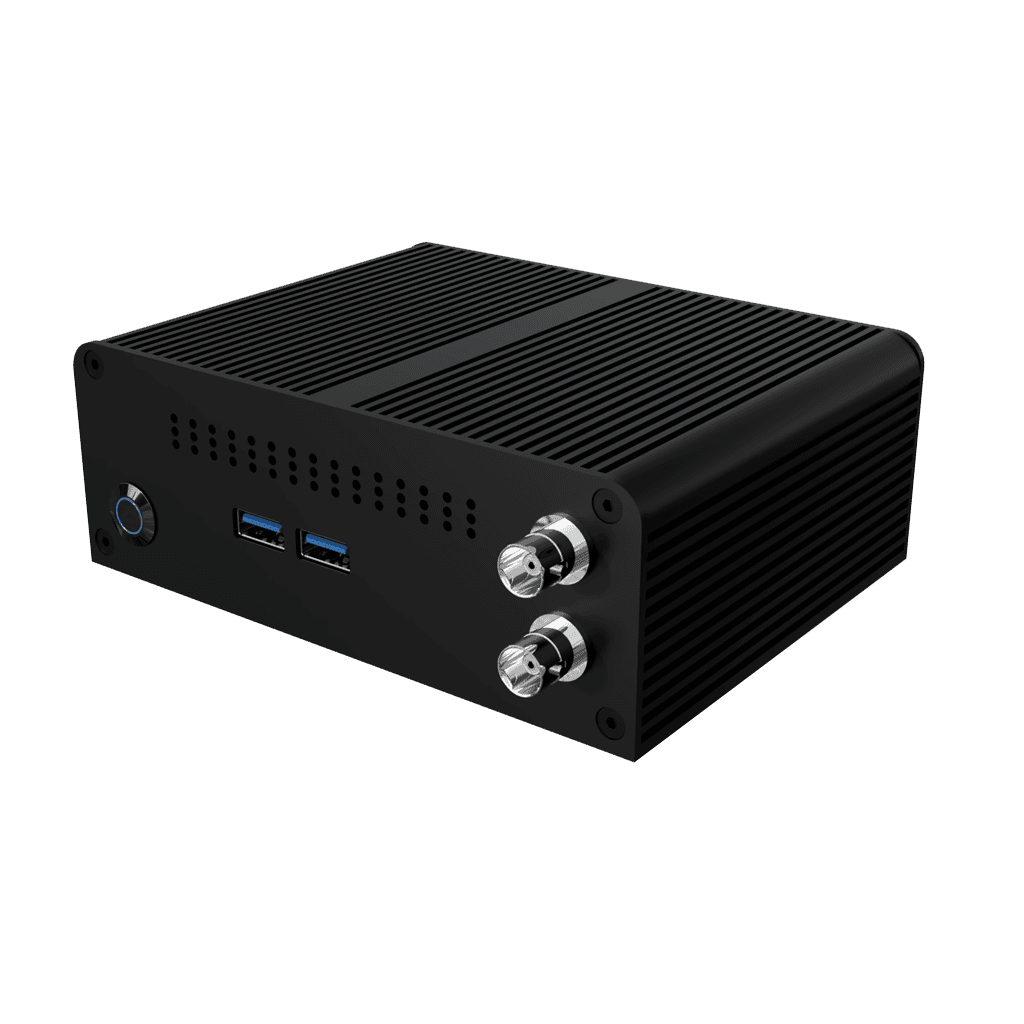

Prizm HE: Rapid calibration: up to 15 min for a prime lens and up to 30 min for a zoom lens. High-precision AR/XR calibration, tracking-space mapping, smoothing and anti-jitter, coordinate-system manipulation, video input and FreeD / OSC / JSON / XML / F4 streaming. Includes SDI video input, multiple calibration and streaming instances, and genlock synchronization.

Calibration examples
